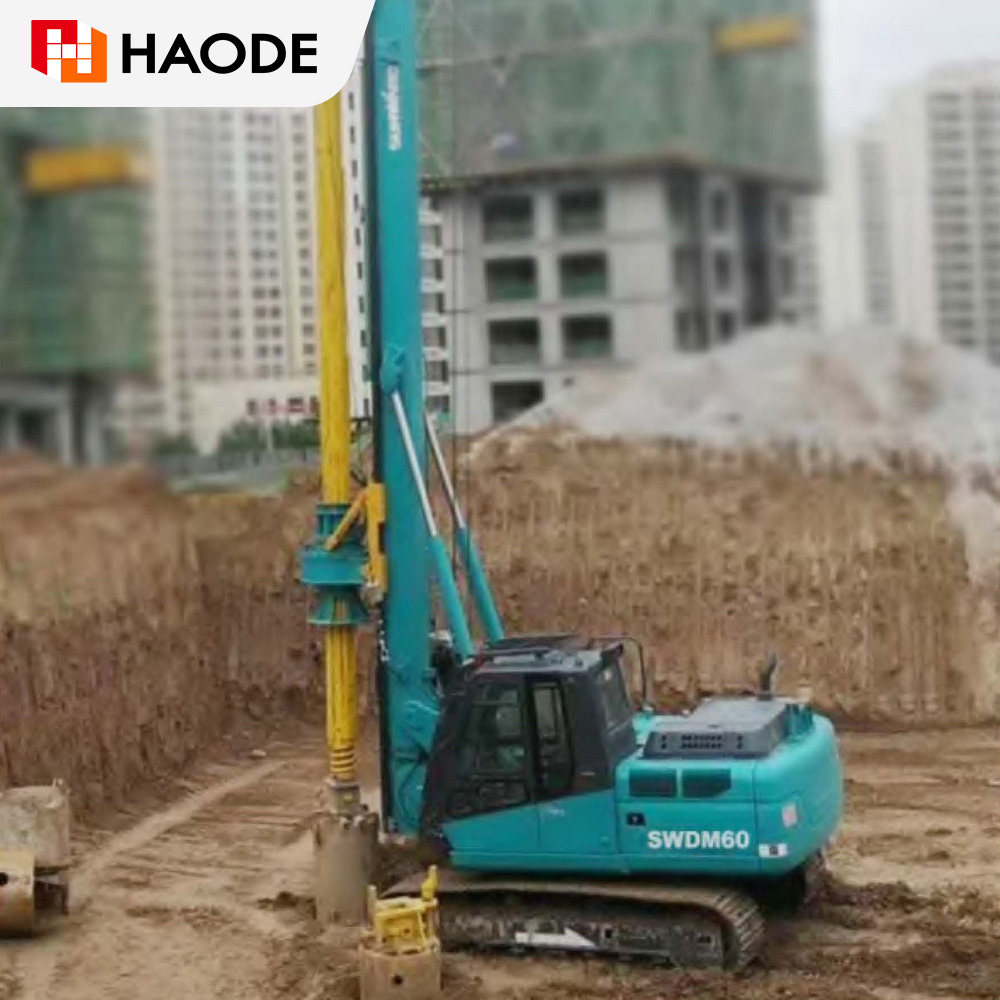

Used SUNWARD SWDM40/60/80 Rotary Drilling Rig

- Production Date: 2020
- Working Hours: 5680 Hours
- Maximum Drilling Diameter: 3000 mm

Compact and agile micro-piling rig with minimal tail swing for tight spaces. Features fast mast folding, 15% higher efficiency, fuel-saving engine, and responsive support—ideal for confined urban and small-scale projects.

QUOTATION REQUEST

Characteristic Parameter Inquiry Case

Characteristic

Maneuverability: Compact tail swing radius for tight workspaces.
Easy Relocation: Transport with mast attached (no oversize limits), quick and low-cost setup between drilling and transport modes; one-touch mast lowering/raising.
High Efficiency: Optimized for micro-piling—high rotary speed, fast hoisting, and 15% faster overall operation.
Eco-Friendly: High-performance engine with low noise and fuel consumption.
Premium Support: Rapid technical service, after-sales assistance, and parts delivery.

Parameter

Download

Year	2020
Working Hours	5680 H
Applicable conditions	Deep foundation construction in infrastructure
Perform Condition	Used Rotary Drill
Engine Brand	Cummins
Max. pile diameter	3,000 mm
Max. pile depth (friction bar)	80 M
Max. pile depth (interlocking bar)	70 M
Max. output torque	160 kN.m
Rotation speed	30 to 100 RPM
Crowd force	200 kN
Line pull	250 kN
Warranty	12 months

Inquiry

Any questions? Contact us—we'll respond within 3 hours.
