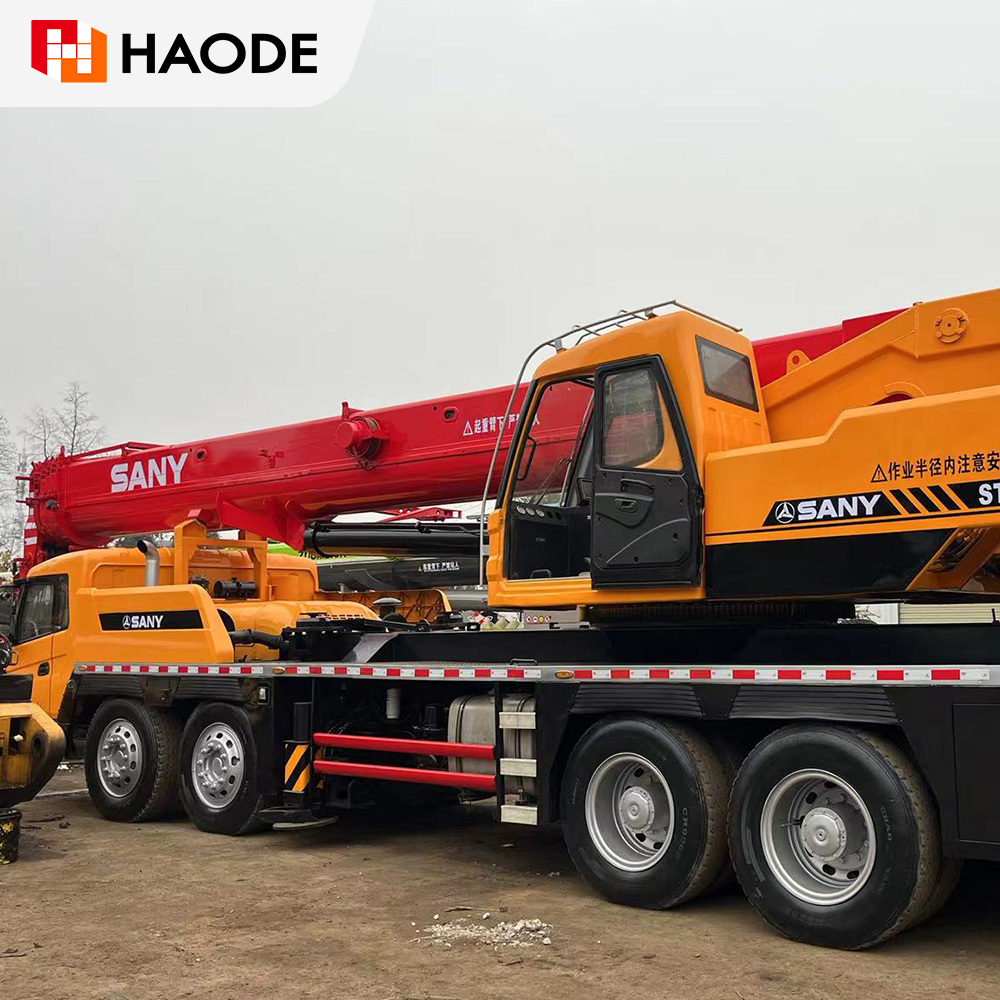

Used Sany STC750 Truck Crane
-
- Production Date: 2011
- Working Hours: 3000 Hours
- Maximum Load Capacity: 75 Ton
The Sany STC75 Truck Crane has a lifting capability of 75 tons,be driven by a 275kW engine capable of reaching a maximum travel speed of 80km/h and a gradeability of 40%. It has hydraulic outriggers and a single circuit hydraulic-assisted steering system.
Characteristic
Boom
Five-part boom with hexagonal cross section; telescoping mechanism supported by two cylinders and sheaves.- Counterweight
4.5t, attached to the turntable via connecting bolts. The option has an active counterbalance of 2.0t. - Hydraulic system
Load feedback system (Kawasaki main pump + US Husco main valve), which regulates the main pump via load feedback pressure to modify pressure and flow, pivot pressure through the pivot handle to achieve infinite speed. - Safety Devices
Colorful LCD with integrated load moment indication, hook load, rated load, boom length, angle, and lifting height. Load charts and working parameter configuration, with a safety-limit feature. - Main winch
Variable displacement piston motor, hydraulic brake system, with Rexroth balancing valve, maximum speed (single rope) 130m/min, rope length 235m.
Parameter
-
Rated Loading Capacity 75ton Max. Lifting Height 61m Max. Lifting Load 90t Engine Brand WP10.270 Working hours 3000 Hydraulic Cylinder Brand Sany Original Hydraulic Pump Brand Sany Original Hydraulic Valve Brand Sany Original Core Components Pressure vessel, PLC Weight (KG) 75000 kg Year 2011 Lifting Height 61M Place of Origin Hunan, China Machinery Test Report Provided Video outgoing - inspection Provided Condition Used Truck Crane Max. lifting torque (Basic boom) 2400KN.m Max. lifting torque (Fully - extended) 318KN.m Max. single rope lifting speed 130m/min Fully - extended boom length 45 m Maximum travel speed 80km/h Maximum Gradient 40% Rated power 276kW / 1460rpm
