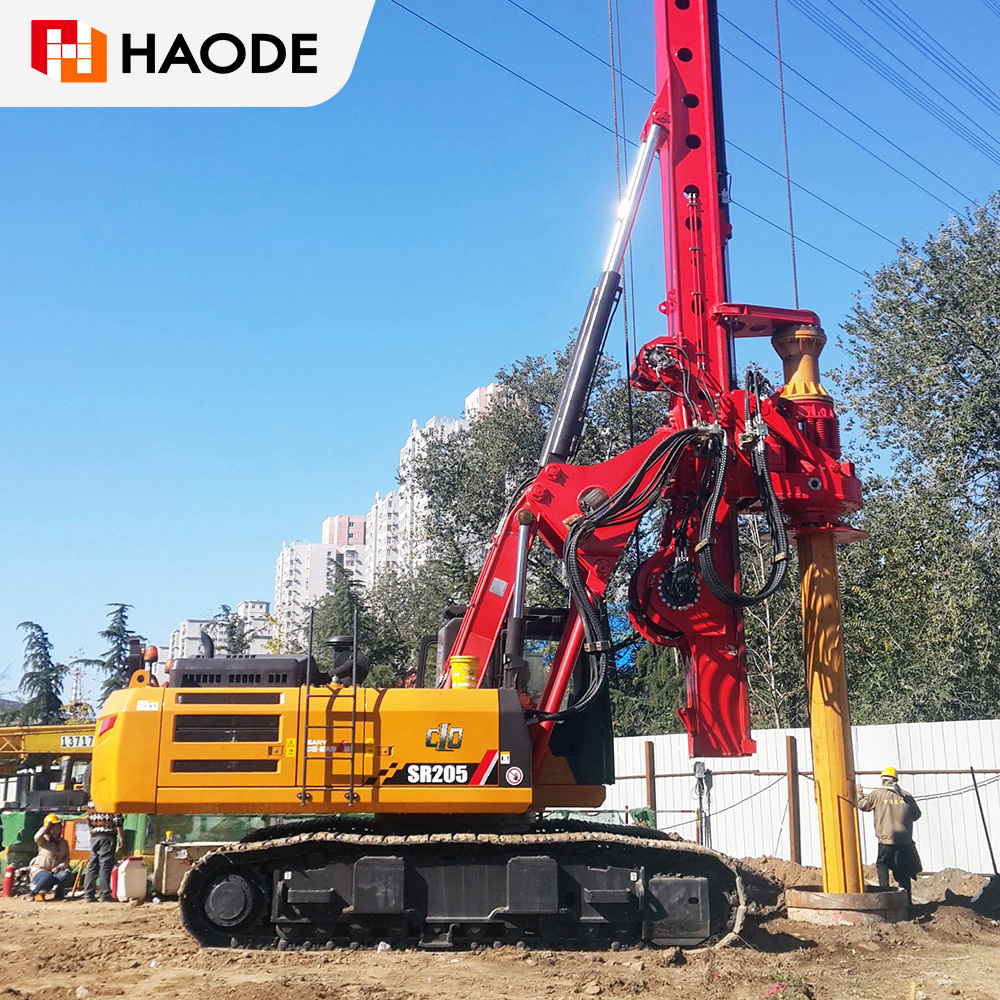

Used SANY SR205 Crawler Rotary Drilling Rig

- Production Date: 2022
- Working Hours: 2850 Hours
- Maximum Drilling Diameter: 1800 mm

This high-performance drilling rig features a 205kN·m torque, 64m depth, and 1,800mm diameter capacity, powered by a 212kW Isuzu engine. Its intelligent ADMS system, robust chassis, and compact design ensure efficiency, safety, and easy urban transport.

QUOTATION REQUEST

Characteristic Parameter Inquiry Case

Characteristic

Powerful Drilling Performance
1. High-strength steel Kelly bars: 14m friction & 13-14m interlocking, max torque 205kN·m
2. Max depth: 64m | Max diameter: 1,800mm
3. Isuzu engine (212kW @ 2,000rpm) + 6-gear control for robust power
4. Main winch: 75m/min line speed, 185kN lifting capacity
Enhanced Safety & Reliability
1. 5th-gen rotary drive: Multi-gear control, self-adaptive tech, dual buffering
2. ADMS intelligent system + advanced hydraulics + heavy-duty chassis
3. Precision components via robotic welding & CNC cutting
Compact & User-Friendly
1. Low transport height/weight for urban mobility
2. Spacious chassis for easy pump/valve maintenance
3. Ergonomic cab with panoramic sunroof for comfort and visibility

Parameter

Download

Maximum Drilling Diameter	1800 mm
Maximum Drilling Depth	51/64 m
Max. output torque	205 kN·m
Rotary speed	5-30 rpm
Engine Power	212/2000 kW/rpm
Operating Weight	63 Ton
Operating Height	21042 mm
