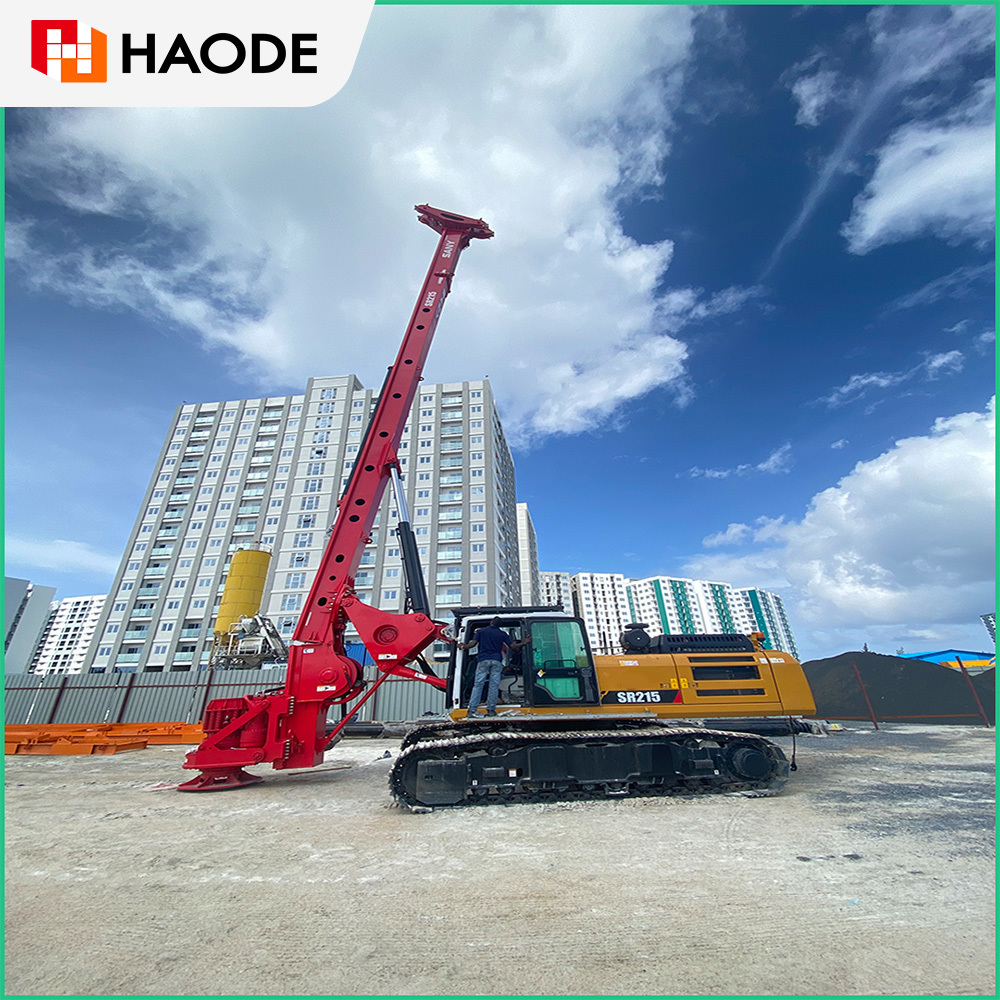

Used Sany SR215-S Rotary Drilling Rig

- Production Date: 2018
- Working Hours: 3800 Hours
- Maximum Drilling Diameter: 1800 mm

Efficient, flexible rotary rig for deep small-diameter boreholes. Stable telescopic chassis, fuel-saving EFI engine, robust mast & Kelly bar, and intuitive 10-inch touchscreen control.

QUOTATION REQUEST

Characteristic Parameter Inquiry Case

Characteristic

Efficient & Flexible
Widely used in civil engineering for small-diameter, deep boreholes, featuring high-speed hoisting, excellent verticality, and superior efficiency.
Special Chassis
Telescopic widening chassis with large-diameter roller slewing bearing ensures stability in deep borehole construction.
Economical & Energy-Saving
Powered by a high-performance EFI engine with optimized power control for real-time adjustment, fast response, and improved fuel efficiency.
High Reliability
Box-structure mast enhances torsion resistance; upgraded Kelly bar with reinforced block ring boosts strength by 25%, excelling in weathered rock drilling.
Intelligent Upgrade
10-inch HD touchscreen ensures fast response and user-friendly operation.

Parameter

Download

Lifting Capacity	220 kN
Max. Line Speed	75 m/min
Rope Diameter	28 mm
Base Engine	Isuzu 6HK1
Engine Power	212/2000 kW/rpm
Emission Regulation	China Stage Ⅲ
Crowd Force	180 kN
Stroke	4200 mm
Line Pull	190 kN
Max. Pile Diameter	1800 mm
Max. Pile Depth	64/51 m
Rated Speed	5~30 rpm
Rated Output Torque	220 kN·m
Overall Height	21040 mm
Operating Weight	65 T
Transport Width	3210 mm
Transport Height	3560 mm
